WheelEEZ® Caster Assembly for 30cm PU wheel (Swivel Caster with ‘Rigid’ Caster option)

$249.00

Complete Caster Assembly for WheelEEZ® 30cm PU Balloon Wheel.
Compatible with Part# WZ1-30UB, WheelEEZ® 30cm (11.7”) Polyurethane Balloon Wheel.

Includes:

  • Mounting Plate with Lanyard and Hitch Pin attached
  • Caster Locking Sleeve (locks swivel)
  • Caster Fork Assembly

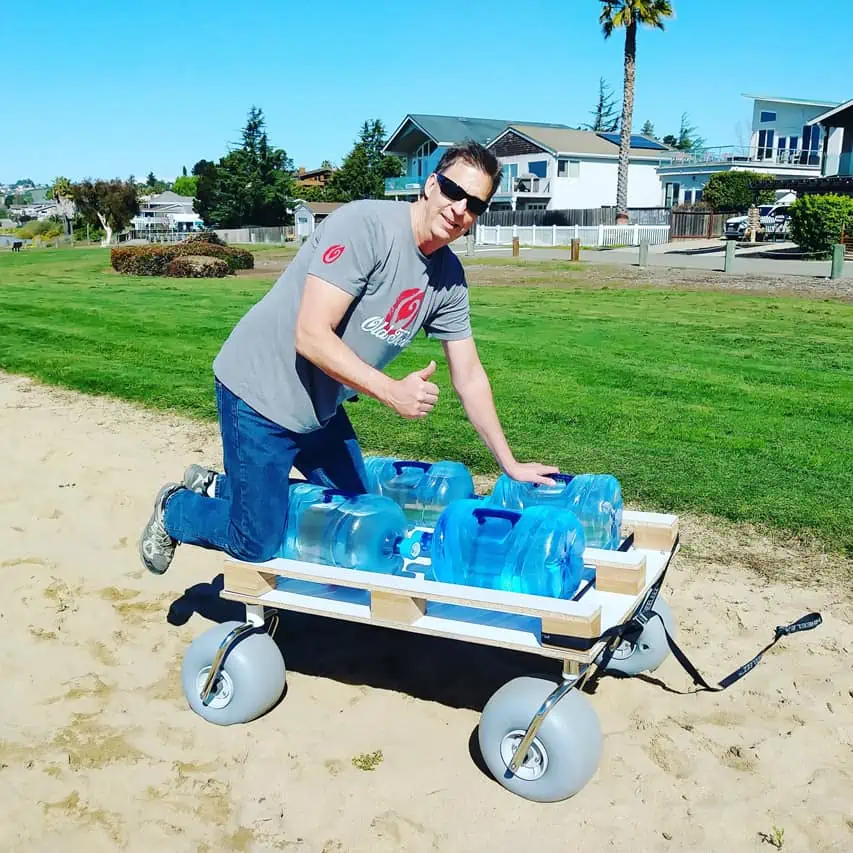

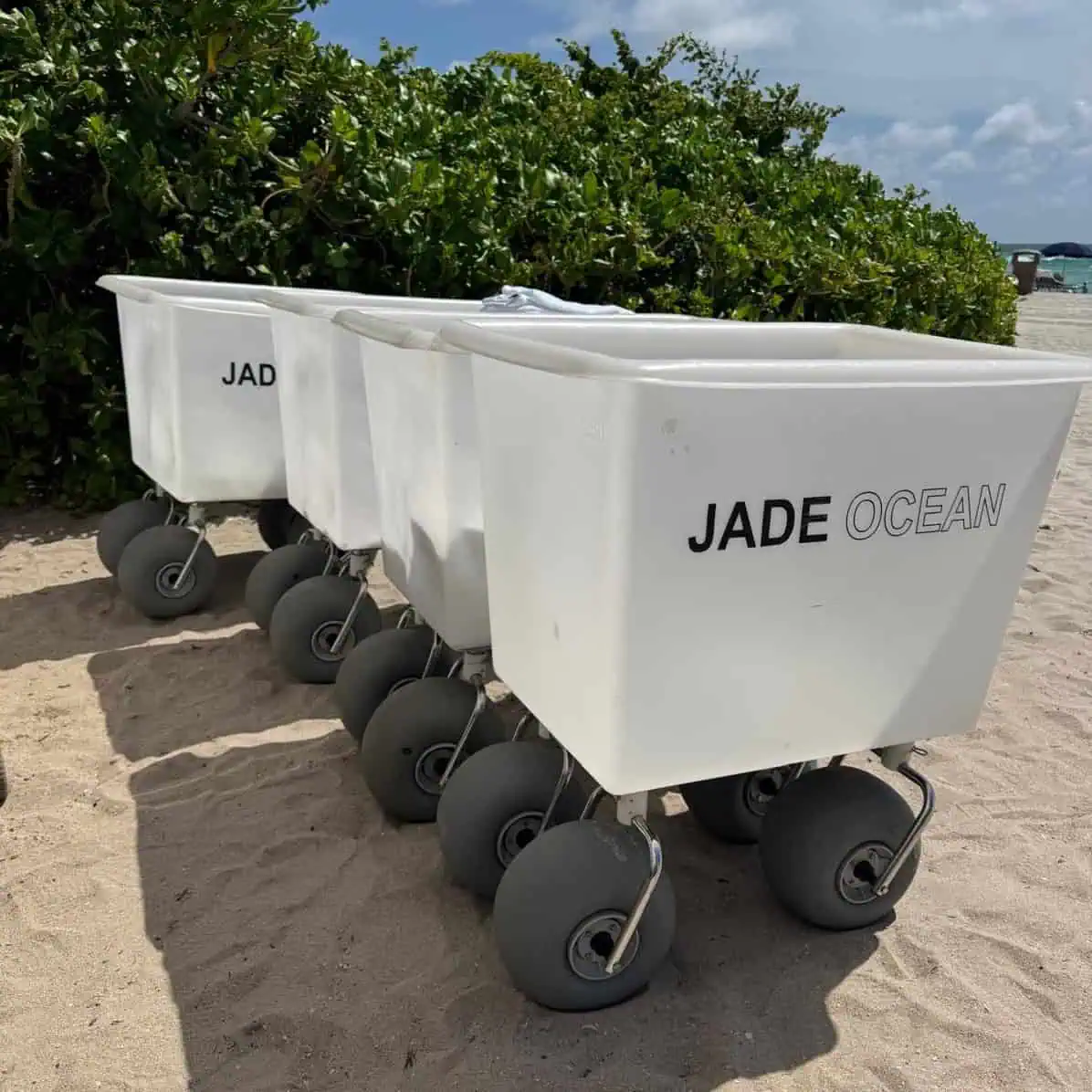

Excellent for mounting the 30cm PU Balloon Wheel to decks, platforms, frames or other applications where an axle shaft is not practical.



Description

Complete Caster Assembly for WheelEEZ® 30cm PU Balloon Wheel.
Compatible with Part# WZ1-30UB, WheelEEZ® 30cm (11.7”) Polyurethane Balloon Wheel.

Includes:

  • Mounting Plate with Lanyard and Hitch Pin attached
  • Caster Locking Sleeve (locks swivel)
  • Caster Fork Assembly

Excellent for mounting the 30cm PU Balloon Wheel to decks, platforms, frames or other applications where an axle shaft is not practical.

Specifications:

  • Caster Fork
    • Electro-polished, 316 Marine Grade Stainless Steel construction.
    • Outside fork width: 29cm (11.4 “), Fork height: 25cm, (10”) wall thickness: 2mm
    • Bushing diameter: 35 x 40mm (1.37 x 1.57”) L
    • Stem Bolt: 70mm (2.75”) L x 12mm (.47”) dia.
    • Caster Locking Sleeve: Locks swivel
  • Base Plate
    • Electro-polished, 316 Marine Grade Stainless Steel construction.
    • Measures: 14 L x 14cm square and 5mm thick (5.5 x 5.5 x .1875″)
    • Bolt hole pattern: 8 x 8cm square (3.1 x 3.1″)
    • Bolt holes: 2 L x 1cm W (.79 x .39″)
    • Stainless Steel Hitch Pin with Lanyard included
  • Maximum Payload: 55 kg (121 lbs.)
  • Base Plate mounting hardware not included

example of drawing req. but with our bolt hole pattern measurements

WheelEEZ® Caster Parts

WheelEEZ® Caster assembly Instruction Sheet

You can also buy parts of the caster…
